Model No: JSB250

ISP250 Isolation Power Supply Unit

This JUSBEL product forms part of an industrial metal detection solution for stone crushers, conveyor belts, mining and aggregate plants. The system continuously monitors material and provides an alarm/output when unwanted metallic contamination is detected.

ISP250 Isolation Power Supply Unit JSB250

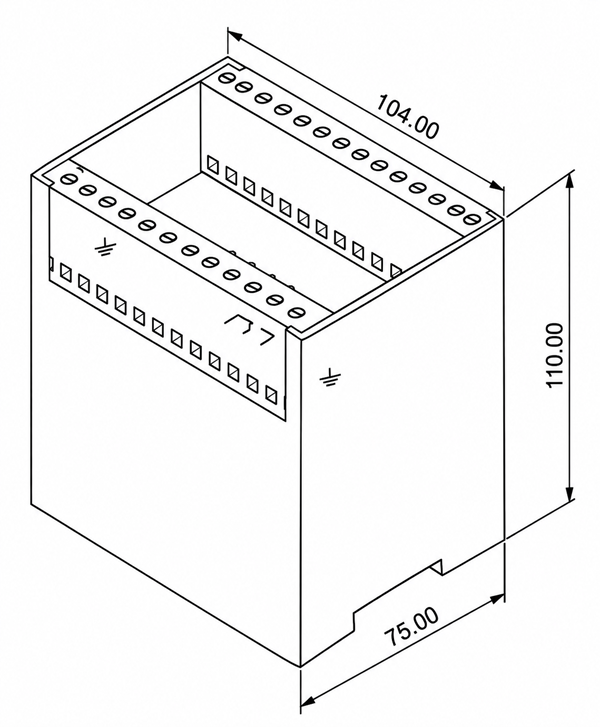

JSB250 Dimensions 104 x 110 x 75 mm
MODEL JSB250
TECHNICAL SPECIFICATIONS

Product Specifications

Model No: JSB250
  • Electrical
  • Supply Voltage230 V AC ± 10%
  • Frequency50-60 Hz
  • Output Voltage230 V AC ± 10%
  • Switching Voltagemax. 250 AC
  • Switching currentmax. 4 AC
  • Power consumption10 VA
  • OutputRelay/Change-over contact
  • Display TypeLED
  • Environmental
  • Ingress ProtectionIP40
  • Ambient Temperature-25°C…+60°C
  • Mechanical
  • Weight0.8 Kg
  • MountingDIN Rail
  • ConnectionScrew terminals
  • Housing MaterialPBT
Download Brochure
PRODUCT DETAILS

ISP250 Isolation Power Supply Unit

This JUSBEL product forms part of an industrial metal detection solution for stone crushers, conveyor belts, mining and aggregate plants. The system continuously monitors material and provides an alarm/output when unwanted metallic contamination is detected.

CRUSHER PROTECTION

How It Helps Protect Your Crusher

Iron rods, tools, bolts, excavator parts, wire and other ferrous objects can accidentally enter material streams and cause serious damage to crushers, conveyors and downstream equipment. JUSBEL detection systems help identify contamination before it reaches critical equipment.

HOW IT WORKS

Detect. Alert. Protect.

Material travels on the conveyor. The detector continuously monitors the material. Metallic contamination is detected. The system activates an alarm/output.

01

Material Flow

Material travels on the conveyor.

02

Detection

The metal detector continuously monitors material.

03

Alarm / Output

Metallic contamination activates an alarm/output.

04

Protection

Operator removes the metal or the output interfaces with the plant control system.
