Model No: JSB8125

MDA Metal Detector Amplifier

This JUSBEL product forms part of an industrial metal detection solution for stone crushers, conveyor belts, mining and aggregate plants. The system continuously monitors material and provides an alarm/output when unwanted metallic contamination is detected.

MDA Metal Detector Amplifier JSB8125

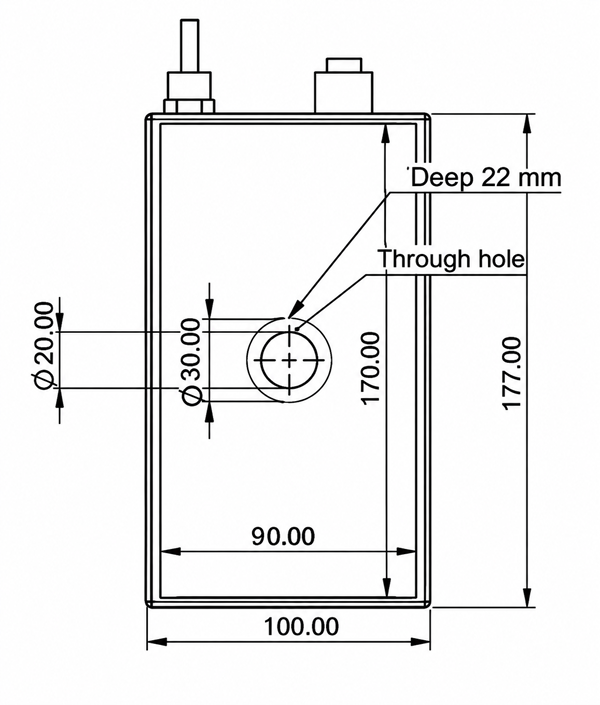

MDA Metal Detector Amplifier JSB8125 Dimensions
MODEL JSB8125
TECHNICAL SPECIFICATIONS

Product Specifications

Model No: JSB8125
  • Electrical
  • Supply Voltage230 V AC ± 10%
  • Switching Voltagemax. 250 V AC / 220 V DC
  • Switching Currentmax. 1 A AC / 2 A DC
  • Switching Powermax. 1000 VA / 62 W
  • Current consumption25 mA
  • OutputRelay/Change-over contact
  • Environmental
  • Ingress ProtectionIP67
  • Ambient Temperature-25°C…+60°C
  • Mechanical
  • Weight1.90 Kg
  • MountingThreaded Pole Mount
  • Housing MaterialPBT
Download Brochure
PRODUCT DETAILS

MDA Metal Detector Amplifier

This JUSBEL product forms part of an industrial metal detection solution for stone crushers, conveyor belts, mining and aggregate plants. The system continuously monitors material and provides an alarm/output when unwanted metallic contamination is detected.

CRUSHER PROTECTION

How It Helps Protect Your Crusher

Iron rods, tools, bolts, excavator parts, wire and other ferrous objects can accidentally enter material streams and cause serious damage to crushers, conveyors and downstream equipment. JUSBEL detection systems help identify contamination before it reaches critical equipment.

HOW IT WORKS

Detect. Alert. Protect.

Material travels on the conveyor. The detector continuously monitors the material. Metallic contamination is detected. The system activates an alarm/output.

01

Material Flow

Material travels on the conveyor.

02

Detection

The metal detector continuously monitors material.

03

Alarm / Output

Metallic contamination activates an alarm/output.

04

Protection

Operator removes the metal or the output interfaces with the plant control system.
